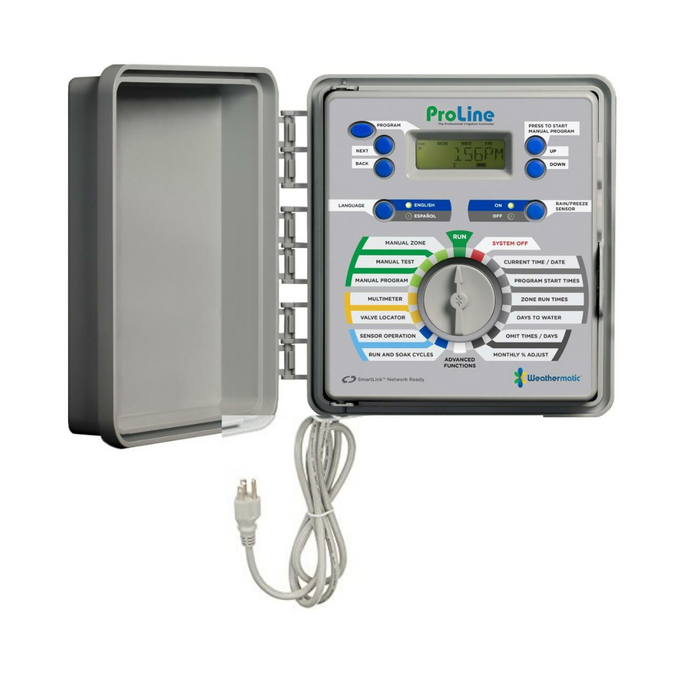

• Weathermatic - ProLine 4-Station Indoor/Outdoor Controller (Expandable to 16 Zones) - PL1600

Weathermatic - ProLine 4-Station Indoor/Outdoor Controller (Expandable to 16 Zones) - PL1600

Weathermatic - ProLine 4-Station Indoor/Outdoor Controller (Expandable to 16 Zones) - PL1600

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
$111.64
$111.64 $144.99
SAVE 23% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Weathermatic - ProLine 4-Station Indoor/Outdoor Controller (Expandable to 16 Zones) - PL1600

Weathermatic - ProLine 4-Station Indoor/Outdoor Controller (Expandable to 16 Zones) - PL1600

$111.64
$111.64 $144.99
SAVE 23% Sold out

4 - Station Base Indoor/Outdoor Model

  • Expandable to 16 zones using SLM4 4-zone hot-swappable modules or SLM12-1600 12-Zone modules (Sold Separately)
  • Internal 120VAC/230VAC transformer with plug and play pre-installed 6' line cord (removable for conduit-wired installations)

  • English/Spanish Language Version, Valve Locator, Omit Days/Dates/Times

BASIC FEATURES
  • Indoor/outdoor rated
  • 5 user selectable languages
  • Zone run times settable from 1 min. to 9 hrs. 55 min.
  • Rain/freeze sensing on/off button with tri-color LED indicator
  • Rain delay of 1 – 7 days
  • RFS5 Rain/Freeze Sensor rain delay programmable from 0 – 99 hours
  • Seasonal % adjust by program, by month
  • Omit time of day window, day(s) of week, and up to 7 calendar dates
  • Programmable zone-to-zone delay 1 min. – 3 hrs.
  • Watering days: custom days of the week, odd/even, or interval days
  • Run/Soak cycles by program
  • Large backlit LCD display
  • Non-volatile memory – with no battery required (9V DC backup battery connection has been omitted as it is no longer necessary with this memory capability.)
  • Internal transformer with pre-installed 6’ line cord
  • Simultaneous solenoid operation: 3 solenoids (PL800/PL1600)
MANUAL OPERATION
  • Manual test runs each zone with zone run times from 10 sec. – 10 min.
  • Manual zone operation of a single zone (1 min. to 9 hrs. 55 min.)
  • Push button manual start of a program from control panel
ON-SITE DIAGNOSTIC/TROUBLESHOOTING FEATURES
  • Fault review displays all faults, including open and shorted zones
  • Test function using on-board multi-meter
  • Built-in valve locator
  • Backtrack Stored Program™
    ADDITIONAL FEATURES
    • Zone-to-zone delay
    • Master valve timing sequence with zone valve programmable
    • Master valve/pump start operation assignable on/off by zone
    • Clear program function
    • Clear all function
    • Grow-in program
    • Two independently programmed master valves
    • Normally open or normally closed master valve operation
    • Real time milliamp display
    Manuals & Literature
    • Installation Instructions
    • Quick Start Guide
    • Owners Manual
    • ProLine Cut Sheet
