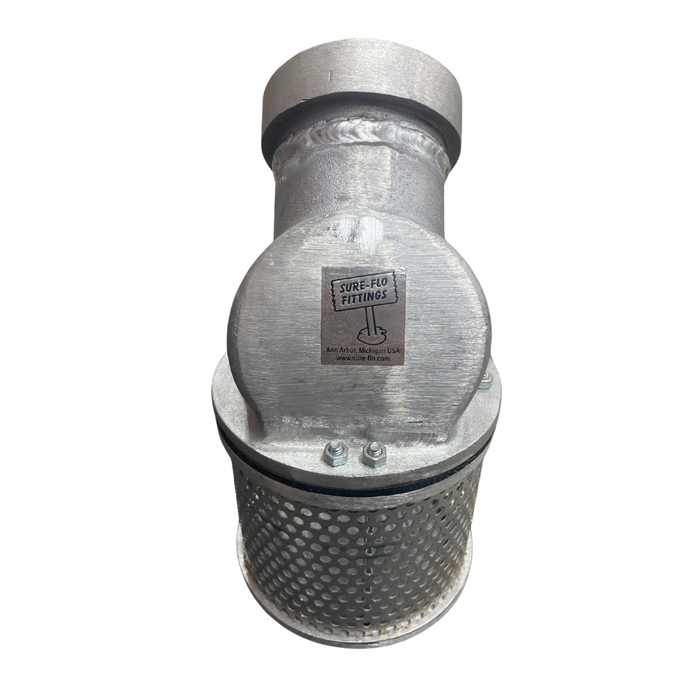

Sure Flo - 3'' Foot Valve 45 Degree Female Thread SFV3-FP

45° Foot Valve - 3'' Female Threaded NPT

FEATURES

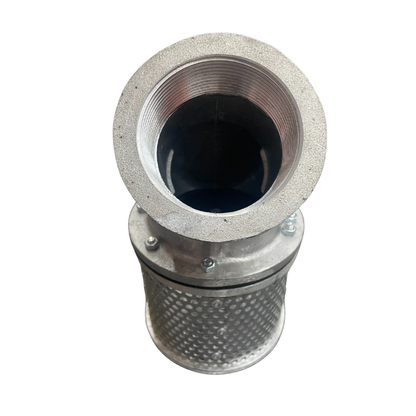

• This 45-degree foot valve attaches to a 3'' NPT Male Pipe Threaded Connection;
• hose, steel pipe, PVC, HDPE pipe.
• Thick cast aluminum is light, strong and durable.
• Efficient flapper-style valve, so when the valve is open, there is very low friction loss for a wide-open efficient valve.
• Comes with Standard Aluminum ¼'' hole screen. (Stainless Steel Option Available)
• Comes with Zinc coated steel fasteners (Stainless Steel Option Available)

STAINLESS STEEL & ADDITIONAL OPTIONS

Please email contact@cheapsprinklers.com if you wish to purchase the Foot Valve with;

• Stainless Steel Nuts & Bolts
• Stainless Steel Screen
• Slide Option or Drain Kit

Downloads

• Installation Instructions
• Foot Valve Parts Diagram
• Flapper Gasket Dimensions
• Sure-Flo Catalog

When to Use a 45° Foot Valve:

When the pump is off, and the foot valve’s flapper is closed or seated against the valve’s seat ring, the flapper and the seat ring should be at an angle. If the suction line is flat or horizontal (floating parallel with the surface of the water) you would use a 45° foot valve:
