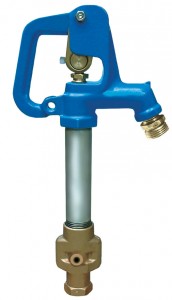

Simmons - 801LF Frost-Proof Yard Hydrant - 1.5' Bury

The Frost Proof Yard Hydrant provides running water for lawn and garden, livestock and fire  protection all year, even in sub-zero temperatures. The shut-off valve operates below the frost line. Hydrant cannot freeze because when it is closed, all water in the standpipe drains out a hole in the valve which is set in the ground below the frost line. Hydrant spout operates at a convenient height (24 inches) from the ground level so that it can spill into a stock tank. Adapter (No. 8828) is threaded for 3/4'' hose. Hydrant can be easily installed anywhere water is supplied under pressure. To prevent unauthorized use, handle can be padlocked by inserting padlock into holes provided in handle and head.

Meets all Federal and state Safe Drinking Water Acts and requirements.
Does not meet California Prop. 65 (Environmental Law)

Features

• 3/4'' NPT Female Inlet
• 3/4'' Male Hose Thread Outlet
• Plunger can be replaced without digging the hydrant up
• All components identical to 800LF Series except head casting and handle are smaller. Does not have flow lock wheel
• Polyester Powder Coat finish
• Part# 4801LF
• Bury Depth: 1.5 Feet
• Weight: 13.5 lbs

Downloads

Hydrant Repair Instructions

Hydrant Lengths

Hydrant Flow Rates
