Includes:

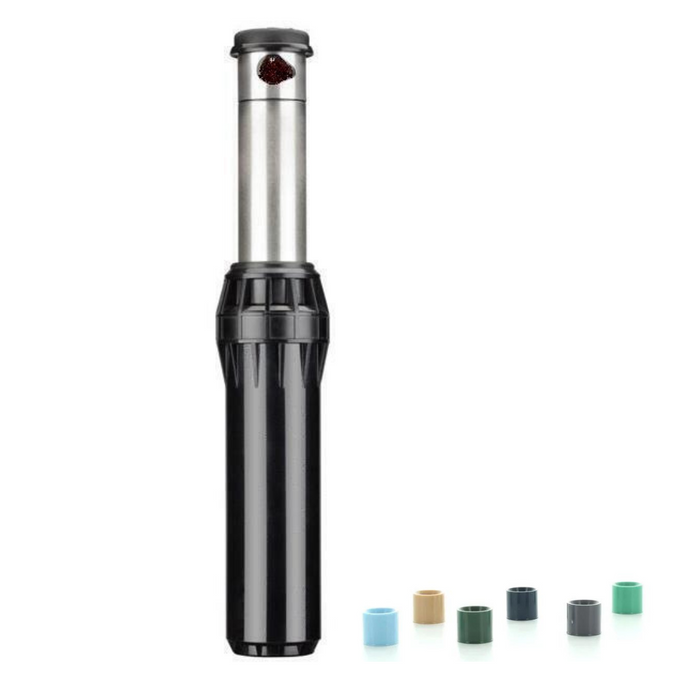

- (6) Nozzles are included per Rotor. (Includes #08, #10, #13, #15, #23, #25)
- 1 Rotor Key included in purchase of 6+ Rotors. 2 keys per case of 12.
- If you purchase less than 6 rotors then a rotor key will need to be purchased separately. Rotor key is part 172000.
- Optional Nozzle Changer Clip must be purchased separately - 123200
Operating Specifications
- Radius: 44' - 69'
- Flow rate: 7.6 to 29.5 GPM
- Recommended pressure range: 40 to 100 PSI
- Operating pressure range: 40 to 100 PSI
- Precipitation rates: 0.4 in/hr approx.
- Nozzle trajectory: 25 degrees
Features
- Model: 6"
- Riser: Stainless Steel
- Inlet Size: 1''
- Arc setting: 50 to 360 degrees
- Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees
- Pre-Installed Drain Check Valve (UP TO 15 FT. OF ELEVATION). The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
- Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
- Color-coded nozzles make identification easy
- Nozzle choices: 6
- Warranty period: 5 years
Specifications
- Overall height: 10¼"
- Pop-up height: 6"
- Exposed diameter: 2"
- Inlet size: 1"
